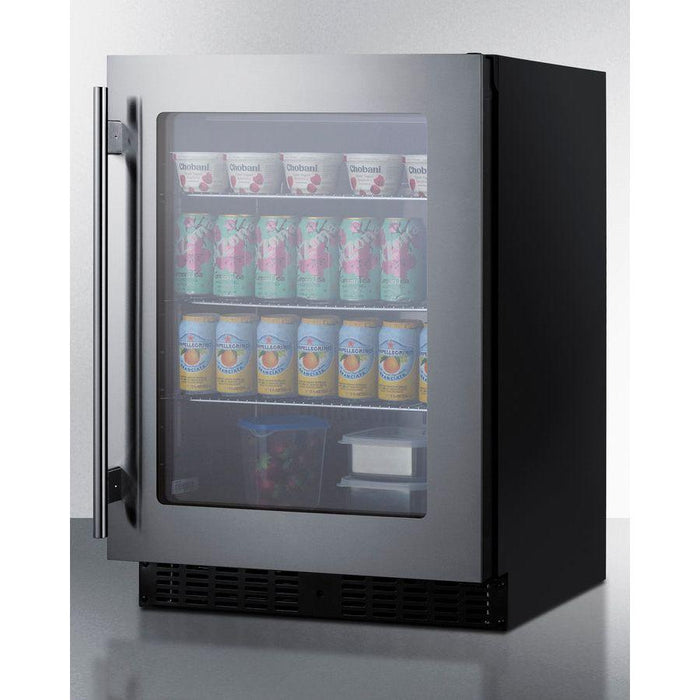

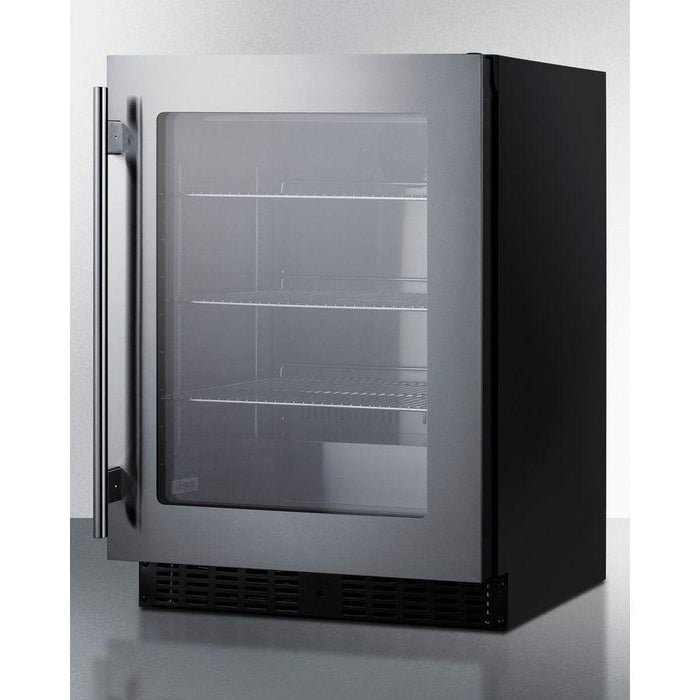

Summit 24 in. Wide Built-In Beverage Center with 3.25 cu. ft. Capacity Reversible Door, Lock, 3 Shelves , ADA Compliant, CFC Free, LED Lighting - ASDG2411

Summit 24 in. Wide Built-In Beverage Center with 3.25 cu. ft. Capacity Reversible Door, Lock, 3 Shelves , ADA Compliant, CFC Free, LED Lighting - ASDG2411

by Summit
SKU ASDG2411
$1,910.00 - $1,910.00
$1,910.00
$1,910.00 - $1,910.00
$1,910.00

✓ Low Rate Shipping - We offer low rate for our products.
✓ Durability Tested - All products have been tested by experts prior to shipping.
✓ Authorized Dealer - We are authorized dealers of every brand on our website.
✓ Questions? Call (313)-228-3996

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

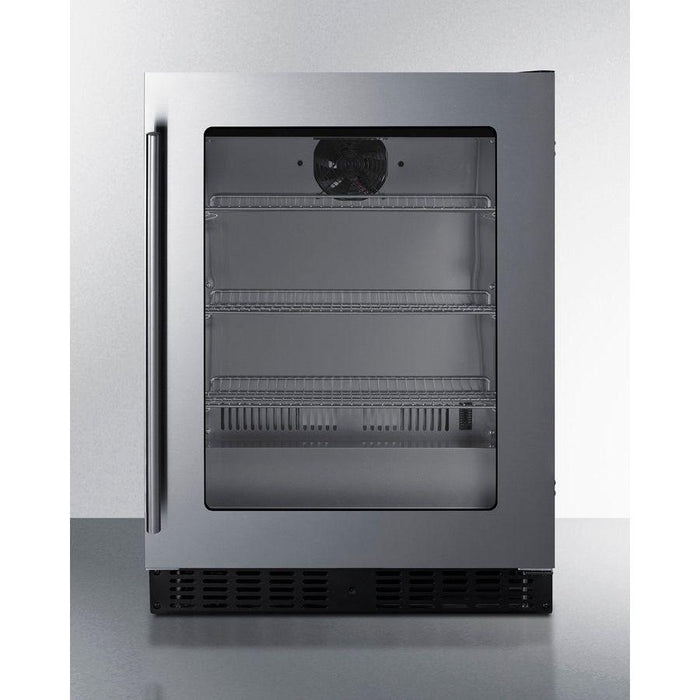

Model ASDG2411 is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock.

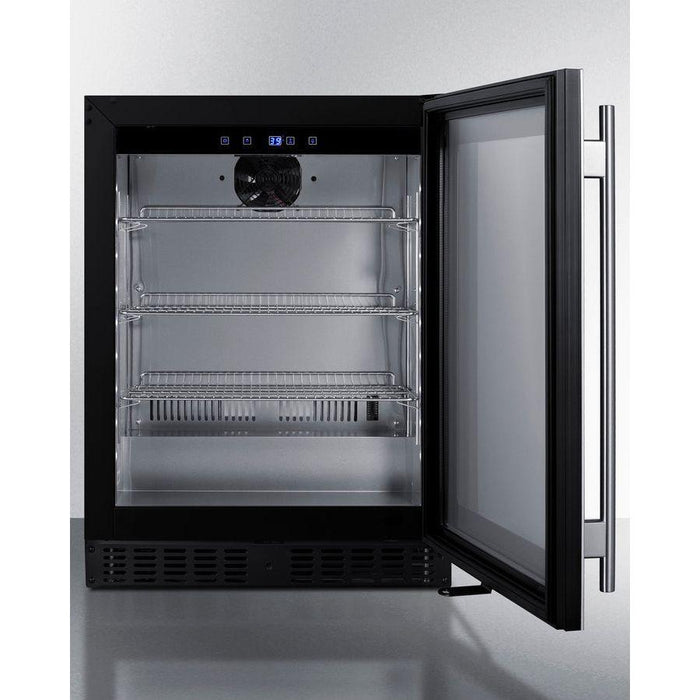

Inside, the ASDG2411 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Commercial grade cantilevered shelving in chrome offers flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

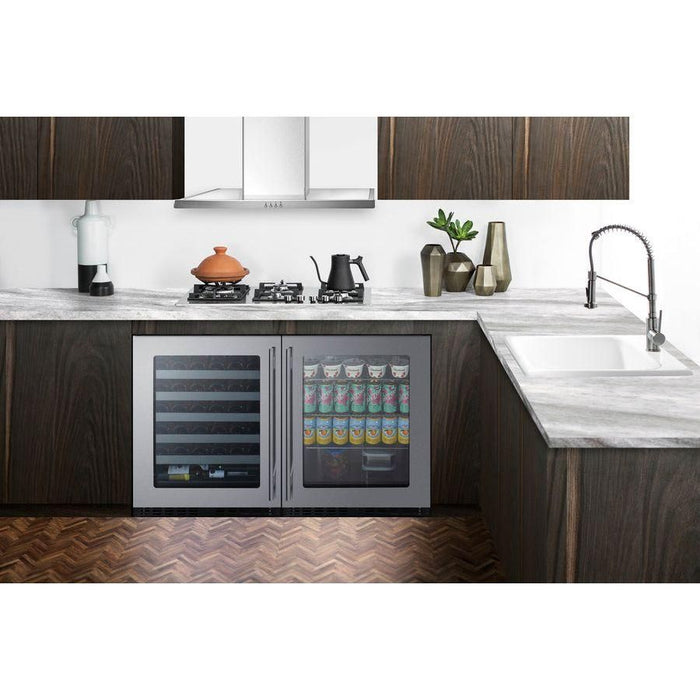

The ASDG2411 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2412 wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

SPECIFICATIONS

Overview

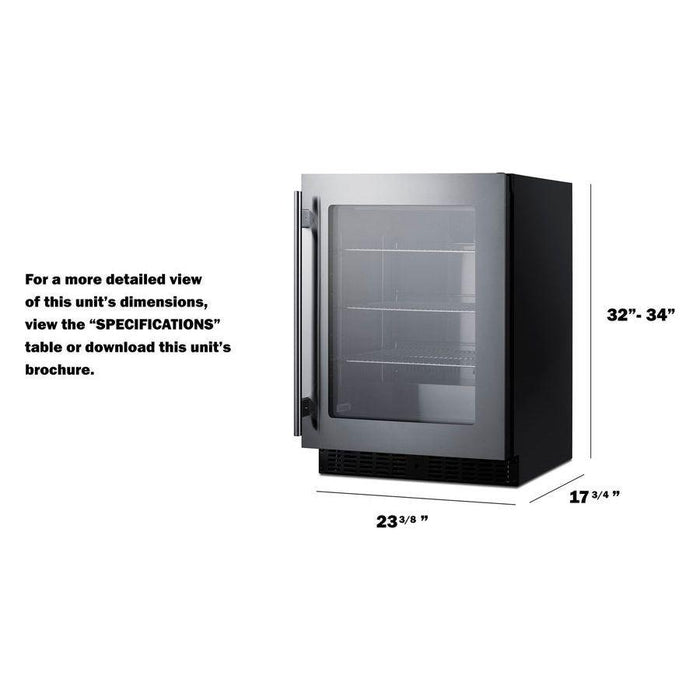

Height of Cabinet 32.0" (81 cm)
Width 23.38" (59 cm)
Depth 17.75" (45 cm)
Depth with Handle 19.63" (50 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 3.25 cu.ft. (92 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 285.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Shipping Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079455
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.1 dB
Dimensions
Interior Height 24.5" (62 cm)
Interior Width 19.5" (50 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)


AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door
T1 Door Tint T2 Door Tint
T3 Door Tint T4 Door Tint
T1S Door Tint



FEATURES

24" wide beverage center

3.25 cu.ft. interior for residential or commercial cold storage

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door

Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Factory installed lock

Keyed lock for a secure interior (2 keys included)

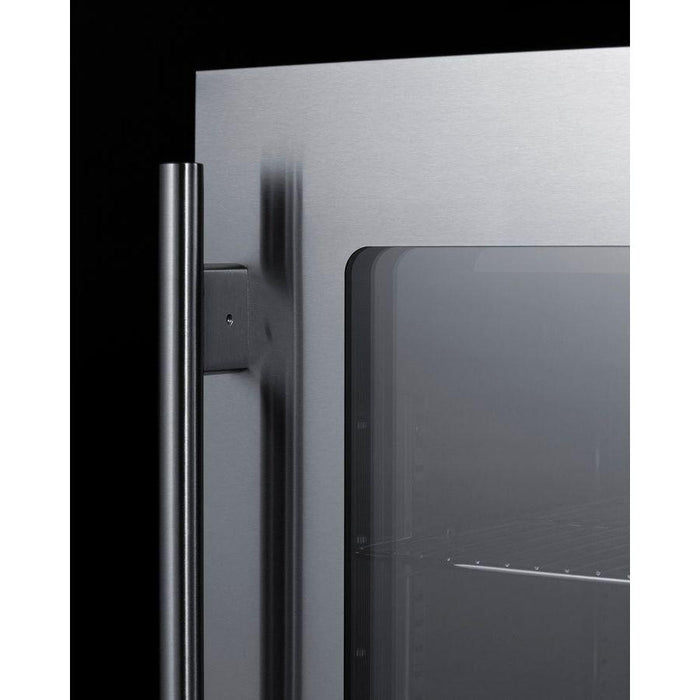

Professional handle

Stainless steel handle completes the look

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

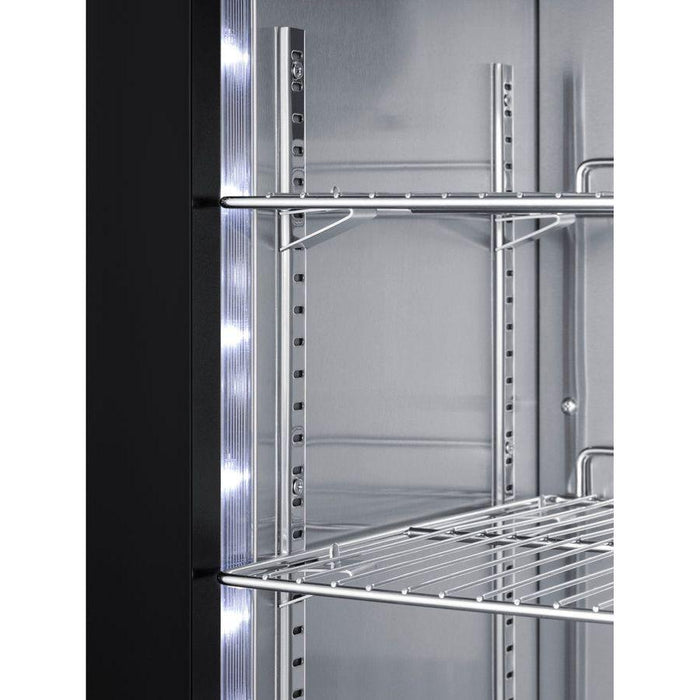

Dimmable LED lighting

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Frost-free operation

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Cantilevered shelving

Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Integrated hinge

Flat hinge ensures no added height is needed when installing under a counter

Reversible door

User-reversible door swing for added flexibility

Fully finished black cabinet

Allows the unit to be used freestanding

Commercially approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
