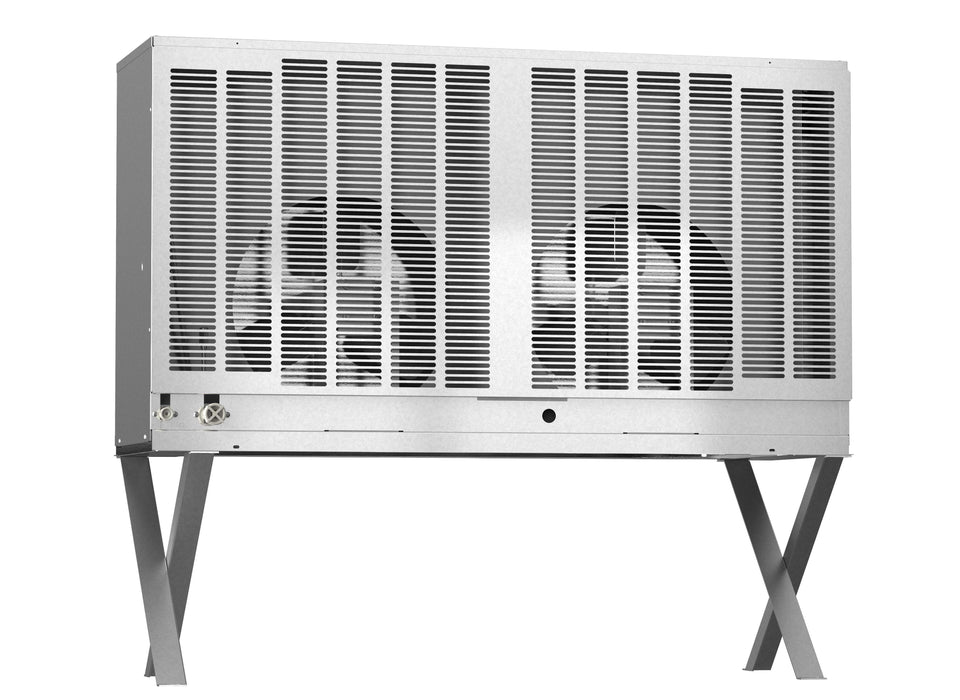

Hoshizaki URC-26J, URC Series Remote Condenser

URC-26J, URC Series Remote Condenser Highlights

The URC-26J, URC Series Remote Condenser provides a quiet, energy-efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.

The URC-26J Remote Condenser operates on Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (9 lbs. 11.2 oz. / 4400 g). Compatible icemakers sold separately: KM-2600SRJ3. The unit is UL Listed and includes a Three Years: Parts & Labor warranty on the entire unit. / Five Years: Parts warranty on air-cooled condenser coil.

URC-26J, URC Series Remote Condenser Features

• Dimensions: 46-3/8″ W x 14-1/16″ D x 40-1/2″ H
• Remote condenser for KM-2600SRJ3
• Quiet operation
• Weather resistant cabinet for longer life
• Must be hardwired at the site (4 wire, including ground)
• Allow 24″ clearance for best performance
• Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground)
• R-404a refrigerant (9 lbs. 11.2 oz. / 4400 g)
• Compatible icemakers, sold separately: KM-2600SRJ3

URC-26J, URC Series Remote Condenser Specification

• Electrical Specs: Icemaker Connection: Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground)
• Operating Limits: Ambient Temp Range: -20 - 122°F, Voltage Range: 104 - 127V, Refrigerant: R-404a, Refrigerant Charge: R-404a, (9 lbs. 11.2 oz. / 4400 g)

Spec Sheet:

Manual:
