The UF48A-01 also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 3.64 kWh/day at 5.9 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes cylinder locks (-01) (factory installed). The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a five years compressor warranty / three years parts and labor warranty.

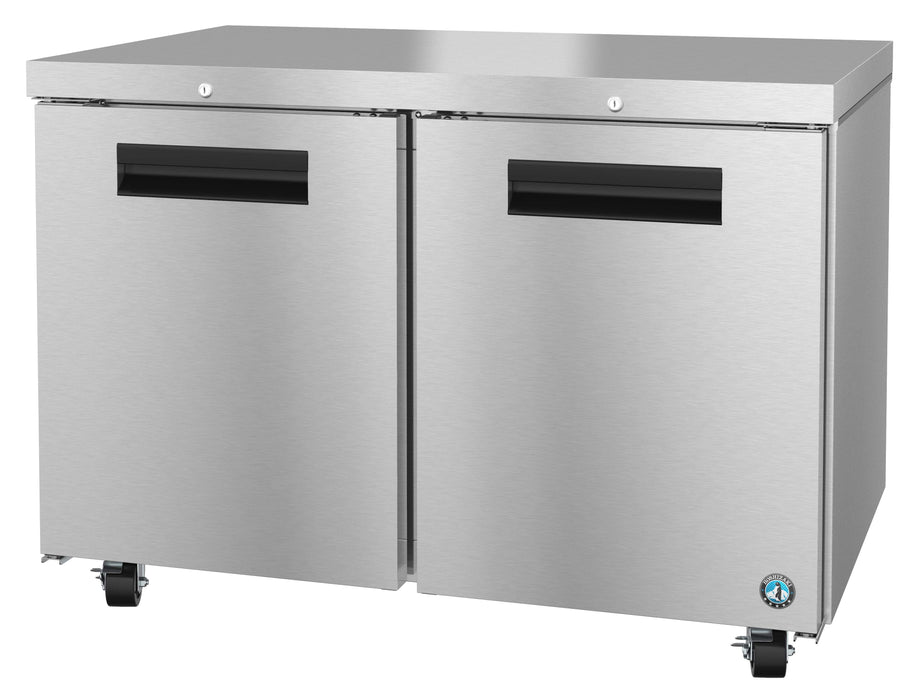

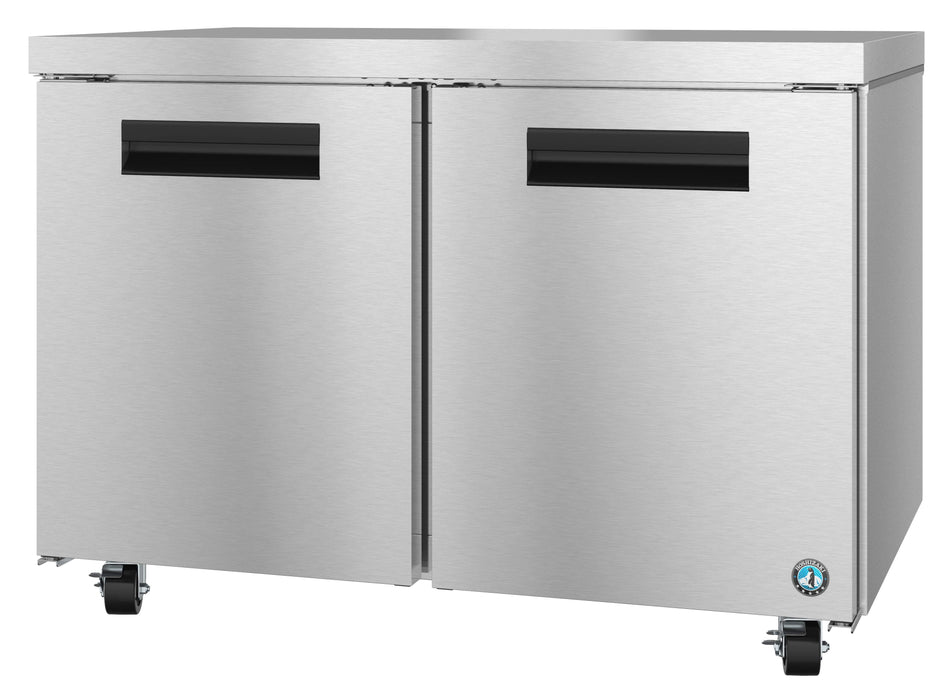

UF48A-01, Freezer, Two Section Undercounter, Stainless Doors with Lock Features
- Dimensions: 48″ W x 30″ D x 33.63″ H
- Net capacity of 12 cubic feet
- Innovative air distribution system distributes air evenly to maintain product temperature
- Enamel coated evaporator coil for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- Extruded aluminum flush mount door handle
- (2) stainless steel doors with ABS interior liner
- Insulated with 2″ CFC free, foamed in place polyurethane
- (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard
- Includes cylinder locks (-01) (factory installed)
- Nominal Compres. of 1360 BTU/hr at 1/3 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 51″ L x 32″ D x 36″ H at 270 lbs
- Automatic time-initiated heated defrost
UF48A-01, Freezer, Two Section Undercounter, Stainless Doors with Lock Specification
- Electrical Specs: Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.64 kwh/day, Amperage: 5.9, Max Fuse/HACR Breaker: 15 A
- Operating Limits: Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: -10 - +10°F, Refrigerant: R290
