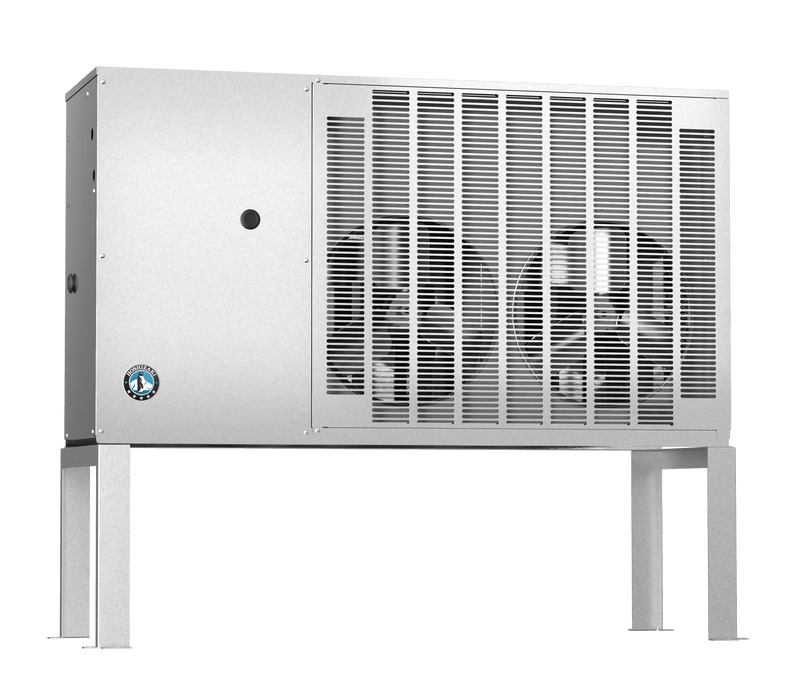

The SRK-15J, SRK Series Remote Condenser provides a quiet, energy-efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Brazing & Refrigerant Required (25′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRK-15J Remote Condenser operates on Single Phase, 230v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (15 lbs. 14 oz. / 7200 g). Compatible icemakers sold separately: KMS-1402MLJ. The unit is UL Listed and includes a Three Years: Parts & Labor warranty on the entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
SRK-15J, SRK Series Remote Condenser Features
- Dimensions: 52-3/8″ W x 19-1/2″ D x 43″ H
- Remote condenser for KMS-1402MLJ
- Quiet operation
- Weather resistant cabinet for longer life
- Must be hardwired at the site (4 wire, including ground)
- Allow 24″ clearance for best performance
- Single Phase, 230v/60/1, Must be hardwired at the site (4 wire, including ground)
- R-404a refrigerant (15 lbs. 14 oz. / 7200 g)
- Compatible icemakers, sold separately: KMS-1402MLJ
SRK-15J, SRK Series Remote Condenser Specification
- Electrical Specs: Icemaker Connection: Single Phase, 230v/60/1, Must be hardwired at the site (4 wire, including ground)
- Operating Limits: Ambient Temp Range: -20 - 122°F, Voltage Range: 187 - 253V, Refrigerant: R-404a, BTU/h: 28,400 BTU/h
