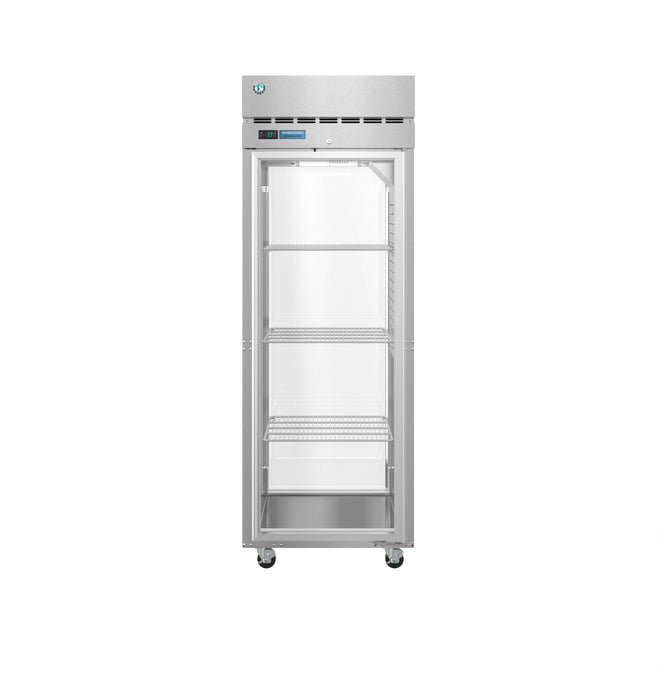

Hoshizaki PT1A-FG-FG, Refrigerator, Single Section Pass Thru Upright, Full Glass Door with Lock

PT1A-FG-FG, Refrigerator, Single Section Pass Thru Upright, Full Glass Door with Lock Highlights

The PT1A-FG-FG Steelheart Series pass thru single section refrigerator with full glass doors front and back which maximizes small kitchen efficiency. The dependable 1/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.

The durable stainless steel exterior (front, sides, top) and a stainless steel interior resists the random damage normal in commercial kitchens. Plus, it is easy to clean. The PT2A-FS-FS includes 6 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports, a solid state digital controller with temperature alarms and led display (°f or °c), and (6) 4″ stem casters (3 with brakes) are standard. It features field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a five years compressor warranty / three years parts and labor warranty.

PT1A-FG-FG, Refrigerator, Single Section Pass Thru Upright, Full Glass Door with Lock Features

• Dimensions: 27.5″ W x 37.75″ D x 79.5″ H
• Interior capacity of 24.2 cubic feet
• Unique “ducted” air distribution system
• Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
• Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
• Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
• One piece, full door length, chrome door handle
• Lockable Full Glass Doors
• Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
• Interior LED light bars are vertically mounted on each wall and one along the ceiling
• Solid state digital controller with temperature alarms and LED display (°F or °C)
• R290 refrigerant
• (4) 4″ Stem Casters (2 with brakes) are standard
• Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
• Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Additional air filter
• Nominal Compres. of 770 BTU/hr at 1/4 HP
• 115v/60/1, 10 ft. cord and plug
• Shipping Crate: 38.25″ L x 31.5″ D x 81″ H at 367 lbs
• Top mounted energy efficient non-electric evaporation system

PT1A-FG-FG, Refrigerator, Single Section Pass Thru Upright, Full Glass Door with Lock Specification

• Electrical Specs: Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.68 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
• Operating Limits: Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 31 - 52°F, Refrigerant: R290
