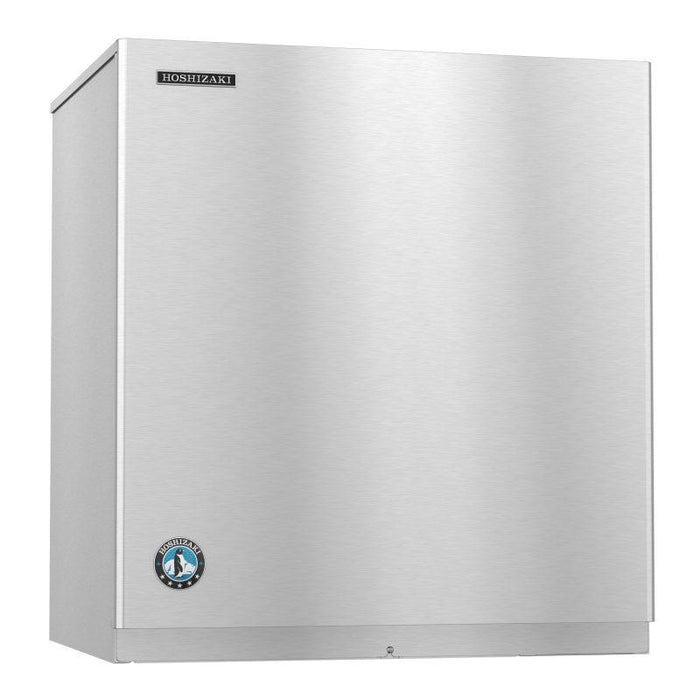

Hoshizaki KMS-2000MLJ with SRK-20J, Crescent Cuber Icemaker, Remote-cooled, Serenity Series

KMS-2000MLJ with SRK-20J, Crescent Cuber Icemaker, Remote-cooled, Serenity Series Highlights

The KMS-2000MLJ with SRK-20J remote condenser is capable of producing approximately 1861 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent-shaped ice cubes. Its ice-on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-20J icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-2000MLJ requires a Single phase, See Remote Condenser,*115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers. Please consult the Specification Sheet for additional details.

KMS-2000MLJ with SRK-20J, Crescent Cuber Icemaker, Remote-cooled, Serenity Series Features

• Dimensions: 30″ W x 24″ D x 32-7/8″ H
• Up to 1861 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent-shaped ice cubes
• Durable stainless steel exterior

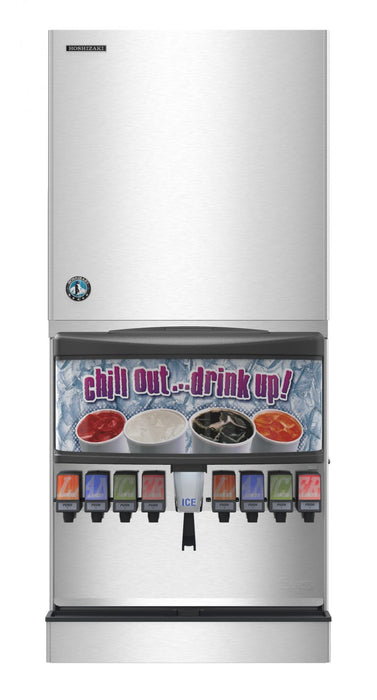

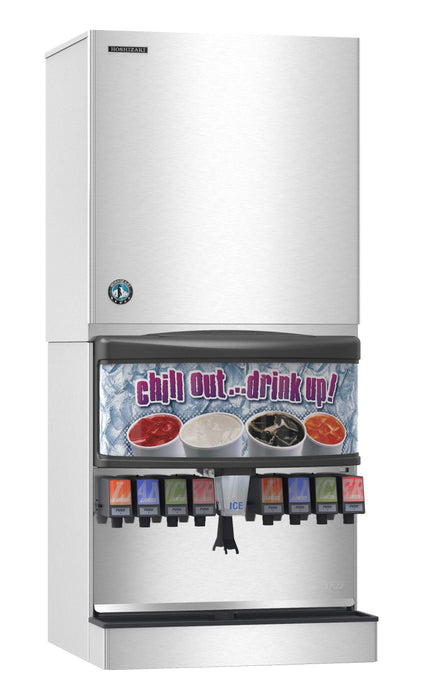

• Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers
• EverCheck™ alert system
• CycleSaver™ design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (7.1 oz. / 201 g)
• Heat Rejection:31200 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 23.3 amps (30 Amp Max fuse)
• 7.1 kwh/100 lbs.@ 90/70
• Single-phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser
• Clean ice and easy maintenance lead to a longer unit life span

KMS-2000MLJ with SRK-20J, Crescent Cuber Icemaker, Remote-cooled, Serenity Series Specifications

• Electrical Specs: Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser, Amperage: 23.3, Max Fuse/HACR Breaker: 30 A
• Plumbing Specs: 1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
• Utility Consumption: 7.1 kWh per 100 lbs @ 90/70, 20 gal of Potable Water per 100 lbs @ 90/70
• Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 31200 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 201 g)

Spec Sheet:

Manual:

Use SRK-20J or SRK-20J3 Condenser for Remote Air-Cooled Unit (sold separately)
