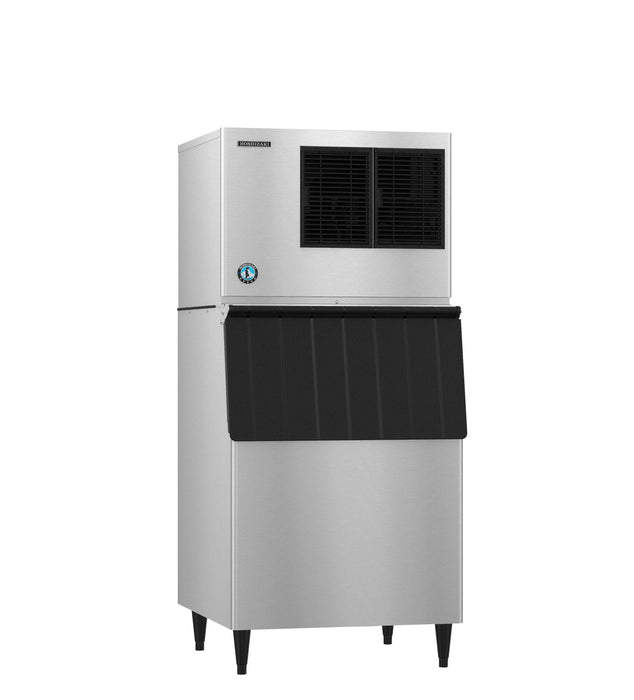

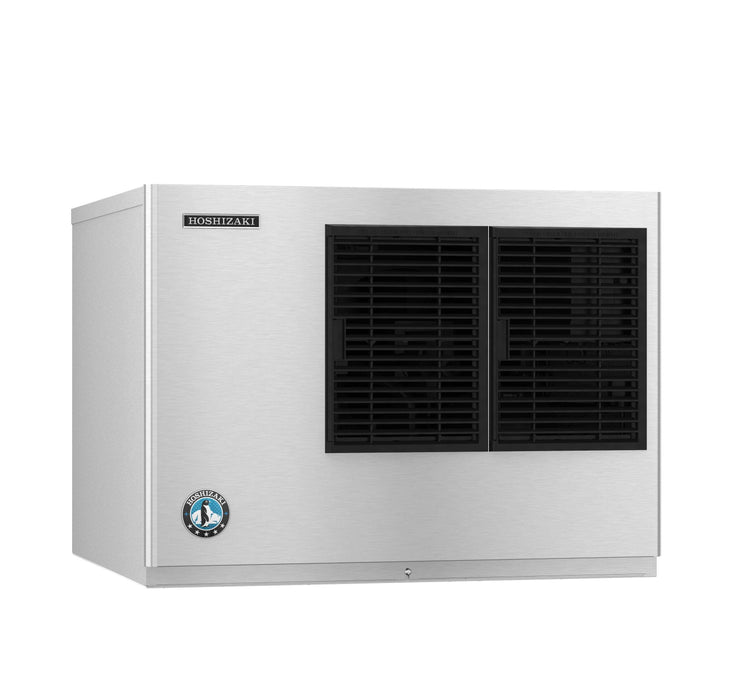

The KML-500MAJ is capable of producing approximately 442 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to lbs of insulated storage to ensure you always have enough ice on hand! This commercial Air-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. EverCheck™ alert system and is Protected by H-GUARD Plus Antimicrobial Agent. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is Clean ice and easy maintenance lead to longer unit life span. The KML-500MAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.
KML-500MAJ, Crescent Cuber Icemaker, Air-cooled Features
- Dimensions: 30″ W x 27-3/8″ D x 22″ H
- Up to 442 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (1 lbs. 10.5 oz. / 750 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.6 amps (20 Amp Max fuse)
- 5.55 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included.
- Clean ice and easy maintenance lead to longer unit life span
KML-500MAJ, Crescent Cuber Icemaker, Air-cooled Specification
- Electrical Specs: Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 7.6, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 5.55 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.5 oz. / 750 g)
