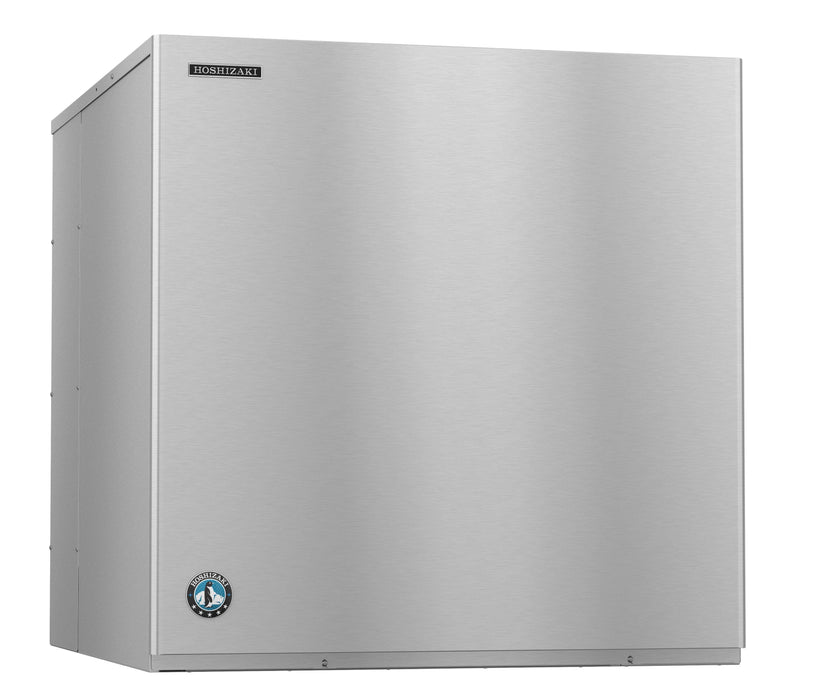

The KMH-2100SRJ is capable of producing approximately 1944 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMH-2100SRJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Kloppenberg 2115. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. Replaces KMH-2000SRH.
KMH-2100SRJ with URC-22F, Crescent Cuber Icemaker, Remote-cooled Features
- Dimensions: 36″ W x 40″ D x 36- 7/16″ H
- Up to 1944 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: Kloppenberg 2115
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (8 lbs. 6 oz. / 3799 g)
- Heat Rejection:27600 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 14.9 amps (30 Amp Max fuse)
- 3.8 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required
KMH-2100SRJ with URC-22F, Crescent Cuber Icemaker, Remote-cooled Specification
- Electrical Specs: Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required, Amperage: 14.9, Max Fuse/HACR Breaker: 30 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 3.8 kWh per 100 lbs @ 90/70, 18.1 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 27600 BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 6 oz. / 3799 g)
