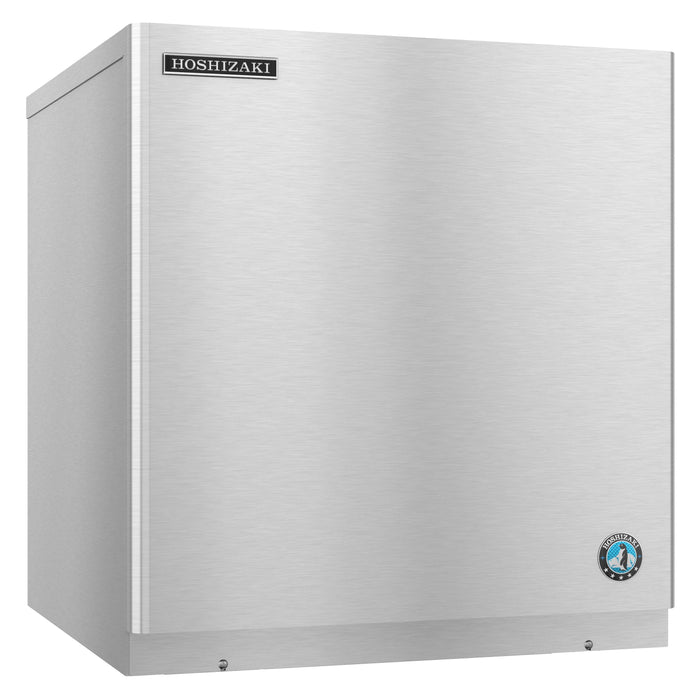

Hoshizaki KMD-410MWJ, Crescent Cuber Icemaker, Water-cooled

 KMD-410MWJ, Crescent Cuber Icemaker, Water-cooled Highlights

The KMD-410MWJ is capable of producing approximately 449 lbs of crescent cubed ice. Hoshizaki’s efficient stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-410MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H. Please consult the Specification Sheet for additional details.

 KMD-410MWJ, Crescent Cuber Icemaker, Water-cooled Features

• Dimensions: 22-1/4″ W x 24-1/8″ D x 24″ H
• Up to 449 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior

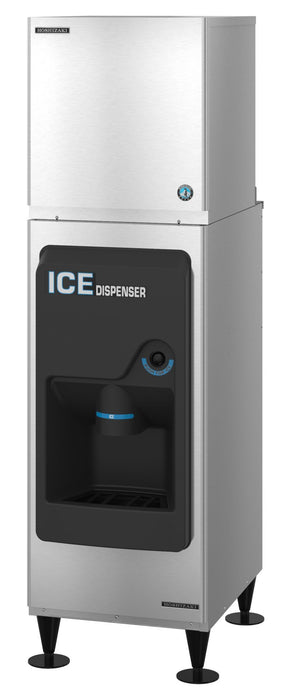

• Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H
• EverCheck™ alert system
• CycleSaver™ design
• Stainless steel evaporator
• R-404A refrigerant (14.1 oz. / 400 g)
• Heat Rejection:6300 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 6.6 amps (20 Amp Max fuse)
• 4.1 kwh/100 lbs.@ 90/70
• Single-phase, 115v/60/1, 3 wire, including ground. Must be hardwired at the site, no cord/plug included
• Clean ice and easy maintenance lead to a longer unit life span

 KMD-410MWJ, Crescent Cuber Icemaker, Water-cooled Features Specifications

• Electrical Specs: Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 6.6, Max Fuse/HACR Breaker: 20 A
• Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent
• Utility Consumption: 4.1 kWh per 100 lbs @ 90/70, 22.9 gal of Potable Water per 100 lbs @ 90/70
• Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 6300 BTU/hr, Refrigerant Charge: R-404A, (14.1 oz. / 400 g)

Spec Sheet:

Manual:
