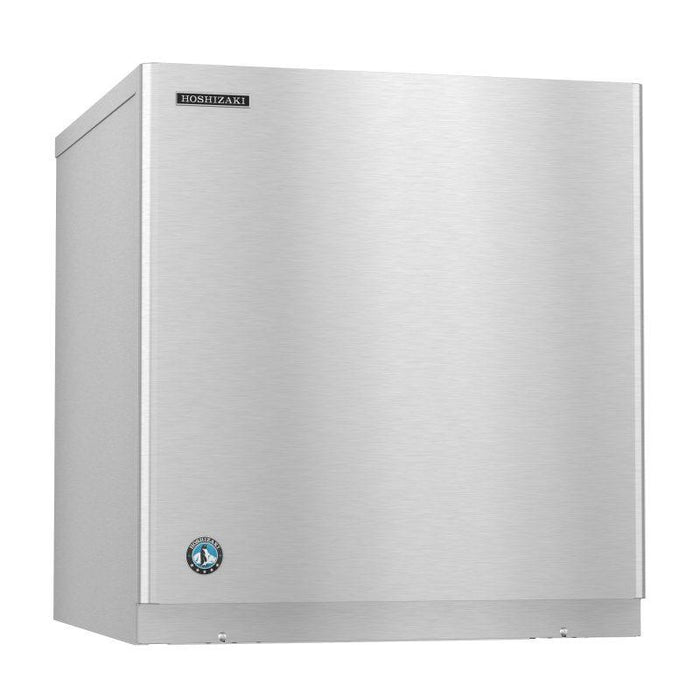

Hoshizaki KMD-410MAJ, Crescent Cuber Icemaker, Air-cooled

KMD-410MAJ, Crescent Cuber Icemaker, Air-cooled Highlights

The KMD-410MAJ is capable of producing approximately 418 lbs of crescent cubed ice. Hoshizaki’s efficient stainless steel evaporators create its unique crescent-shaped ice cubes. Its ice-on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms, and more. This Air-cooled, Modular ice maker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-410MAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at the site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H. Please consult the Specification Sheet for additional details.

KMD-410MAJ, Crescent Cuber Icemaker, Air-cooled Features

• Dimensions: 22-1/4″ W x 24-1/8″ D x 24″ H
• Up to 418 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior

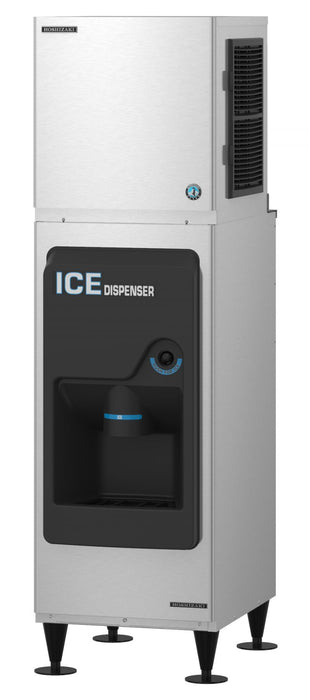

• Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H
• EverCheck™ alert system
• CycleSaver™ design
• Stainless steel evaporator
• R-404A refrigerant (1 lbs. 0.9 oz. / 479 g)
• Heat Rejection:5500 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 8.2 amps (20 Amp Max fuse)
• 5.7 kwh/100 lbs.@ 90/70
• Single-phase, 115v/60/1, 3 wire, including ground. Must be hardwired at the site, no cord/plug included
• Clean ice and easy maintenance lead to a longer unit life span

KMD-410MAJ, Crescent Cuber Icemaker, Air-cooled Specifications

• Electrical Specs: Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.2, Max Fuse/HACR Breaker: 20 A
• Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
• Utility Consumption: 5.7 kWh per 100 lbs @ 90/70, 23.7 gal of Potable Water per 100 lbs @ 90/70
• Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 5500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 0.9 oz. / 479 g)
