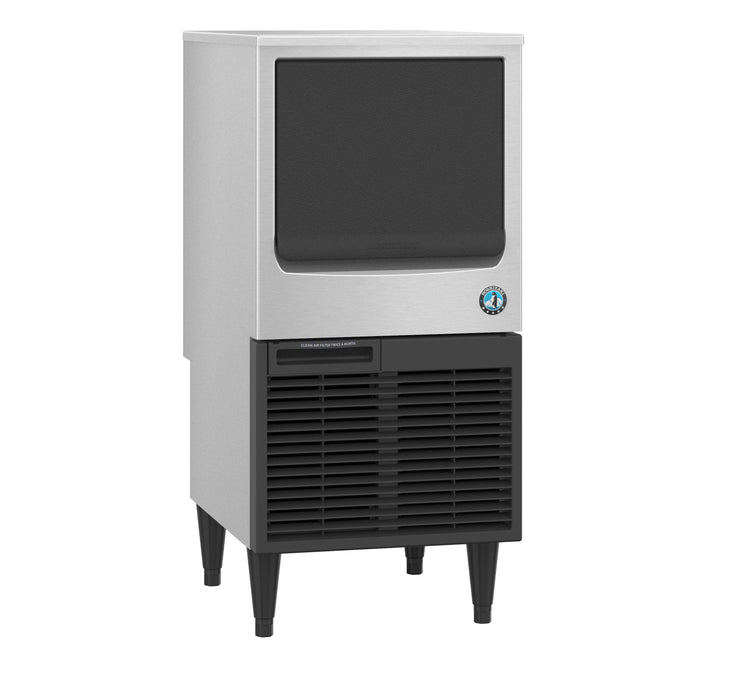

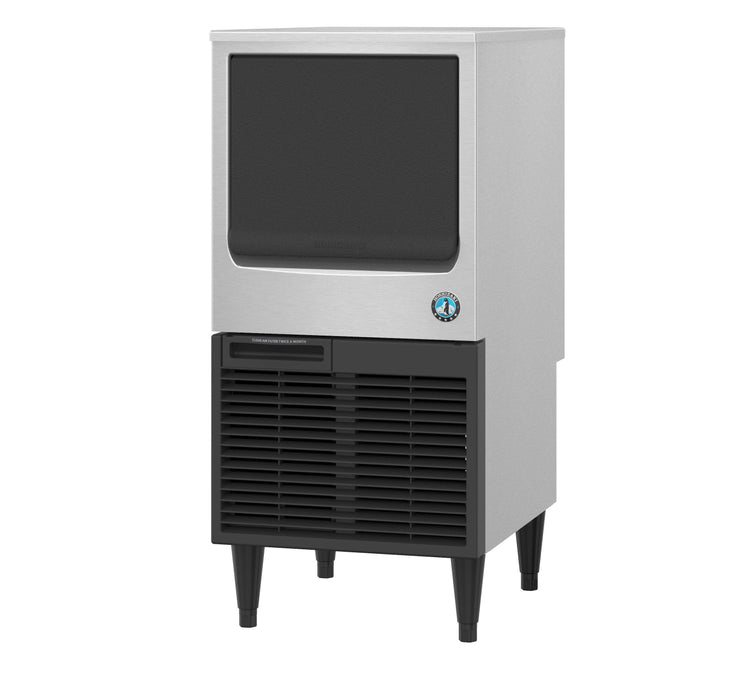

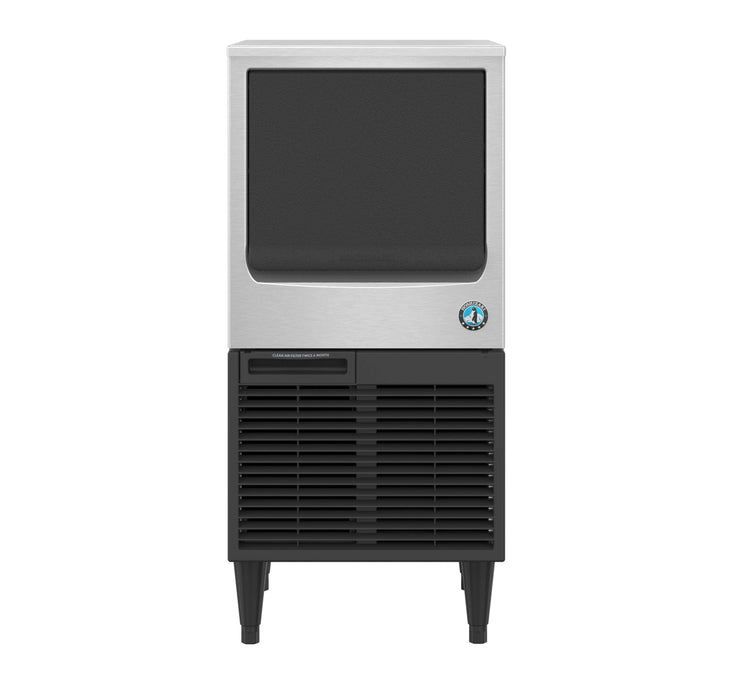

Hoshizaki KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built-in Storage Bin Highlights

The KM-81BAJ is capable of producing approximately 86 lbs of crescent cubed ice. This Undercounter Air-cooled, Built-in Storage Bin icemaker stores up to 38 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-81BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-80BAJ.

KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built-in Storage Bin Features

• Dimensions: 17-3/4″ W x 24″ D x 39″ H
• Up to 86 lbs of ice produced per 24 hours
• Up to 38 lbs of built-in storage capacity (1.3ft3)
• Produces crescent-shaped ice cubes
• Slide in the door with durable stainless steel exterior
• Front in, front out airflow
• EverCheck™ alert system
• CycleSaver™ design
• HS-5061 drain pump assembly sold separately
• R-134a refrigerant (7.1 oz. / 201 g)
• Heat Rejection:1350 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 3.5 amps (15 Amp Max fuse)
• 7.95 kwh/100 lbs.@ 90/70
• Single-phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
• ENERGY STAR® qualified

KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built-in Storage Bin Specification

• Electrical Specs: Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 3.5, Max Fuse/HACR Breaker: 15 A
• Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
• Utility Consumption: 7.95 kWh per 100 lbs @ 90/70, 18.2 gal of Potable Water per 100 lbs @ 90/70
• Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 1350 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 201 g)
