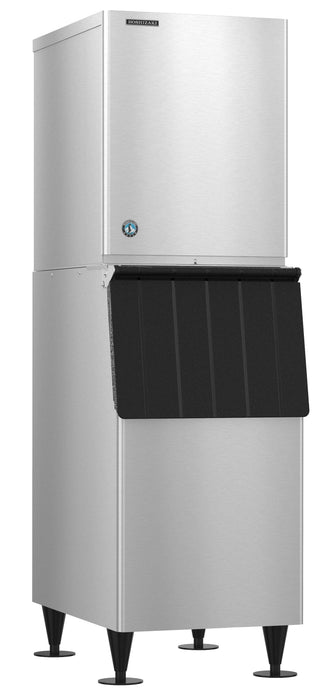

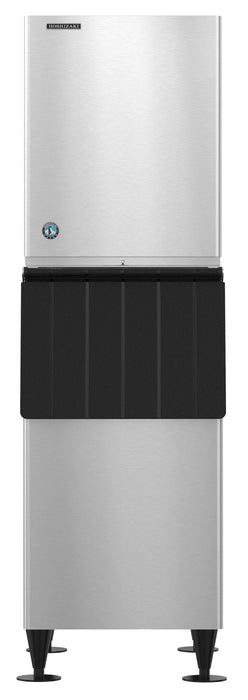

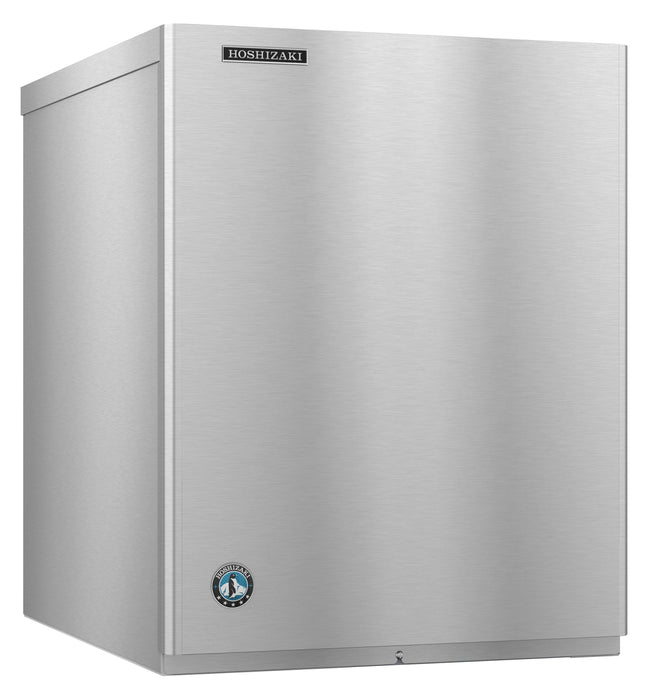

The KM-520MRJ is capable of producing approximately 547 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent-shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-5F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-520MRJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at the site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. Replaces KM-515MRJ.
KM-520MRJ with URC-5F, Crescent Cuber Icemaker, Remote-cooled Features
- Dimensions: 22″ W x 27-3/8″ D x 28″ H
- Up to 547 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent-shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (4 lbs. 2.7oz. / 1891 g)
- Heat Rejection:7600 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 12.05 amps (20 Amp Max fuse)
- 4.8 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- ENERGY STAR® qualified
KM-520MRJ with URC-5F, Crescent Cuber Icemaker, Remote-cooled Specification
- Electrical Specs: Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at the site, no cord/plug included, Amperage: 12.05, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 4.8 kWh per 100 lbs @ 90/70, 13.6 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 7600 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 2.7oz. / 1891 g)
