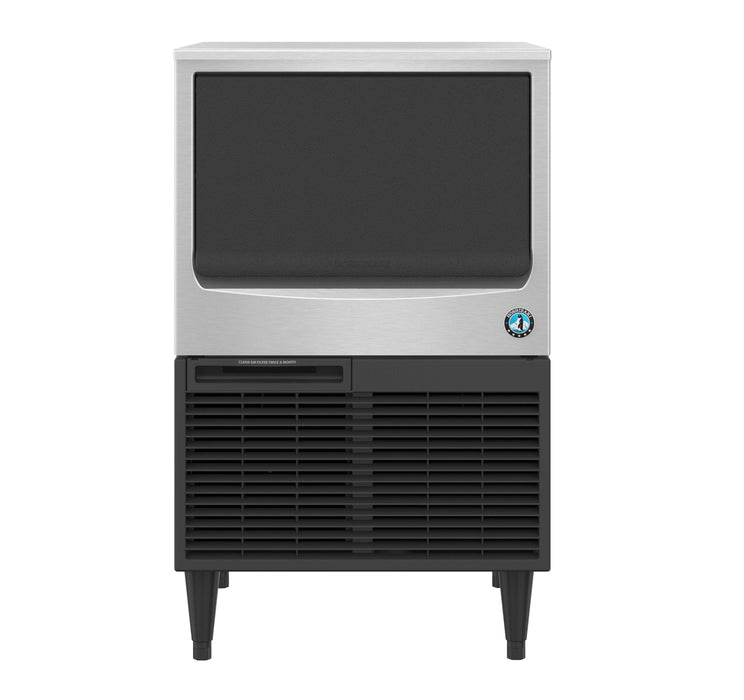

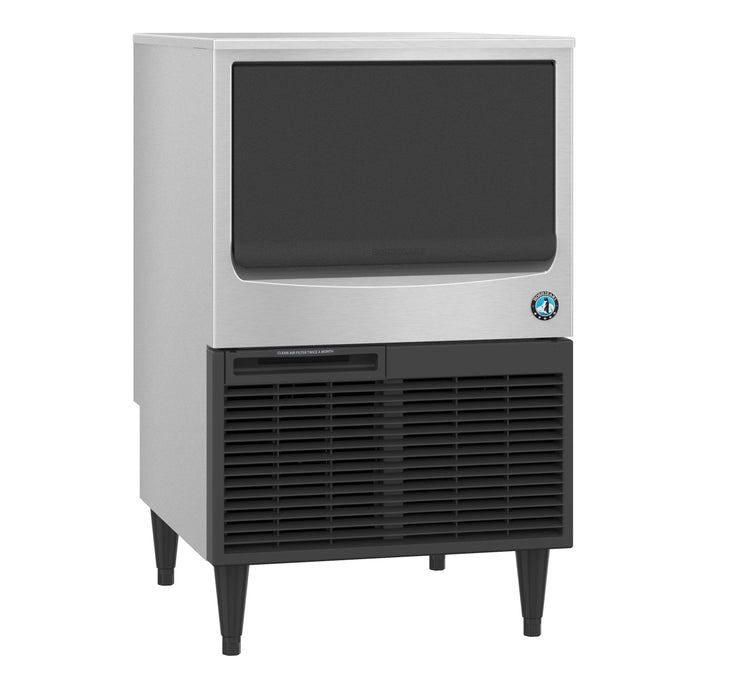

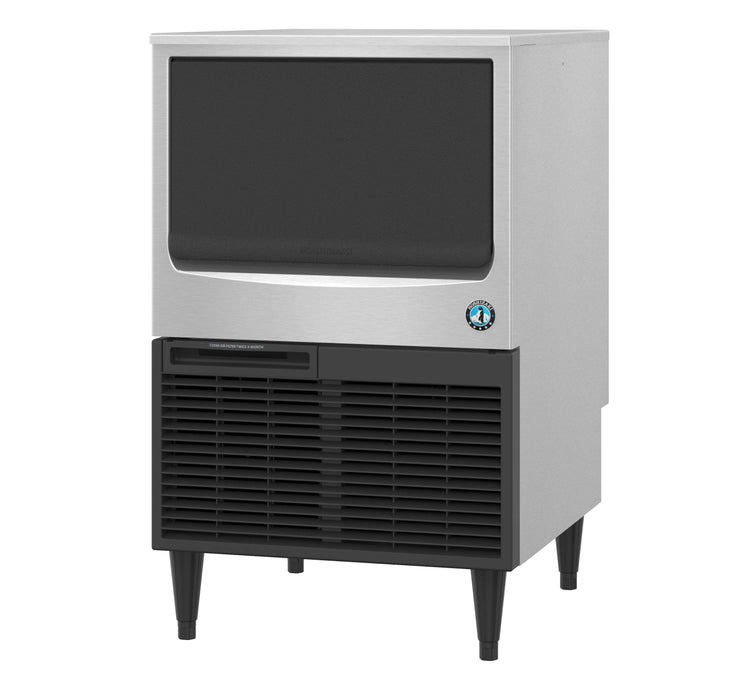

The KM-161BWJ is capable of producing approximately 157 lbs of crescent cubed ice. This Undercounter Water-cooled, Built-in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-161BWJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-160BWJ.
KM-161BWJ, Crescent Cuber Icemaker, Water-cooled, Built-in Storage Bin Features
- Dimensions: 23-3/4″ W x 28″ D x 39″ H
- Up to 157 lbs of ice produced per 24 hours
- Up to 78 lbs of built-in storage capacity (2.6ft3)
- Produces crescent-shaped ice cubes
- Durable stainless steel exterior
- Front in, front out airflow
- EverCheck™ alert system
- CycleSaver™ design
- Slide indoor, ice bin opening is ADA compliant
- R-134a refrigerant (10.6 oz. / 301 g)
- Heat Rejection:2900 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 6.4 amps (15 Amp Max fuse)
- 6.23 kwh/100 lbs.@ 90/70
- Single-phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to a longer unit life span
KM-161BWJ, Crescent Cuber Icemaker, Water-cooled, Built-in Storage Bin Specification
- Electrical Specs: Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 6.4, Max Fuse/HACR Breaker: 15 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 1/2" FPT Outlet, Minimum 1/4" Nominal ID Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
- Utility Consumption: 6.23 kWh per 100 lbs @ 90/70, 23.9 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 2900 BTU/hr, Refrigerant Charge: R-134a, (10.6 oz. / 301 g)
