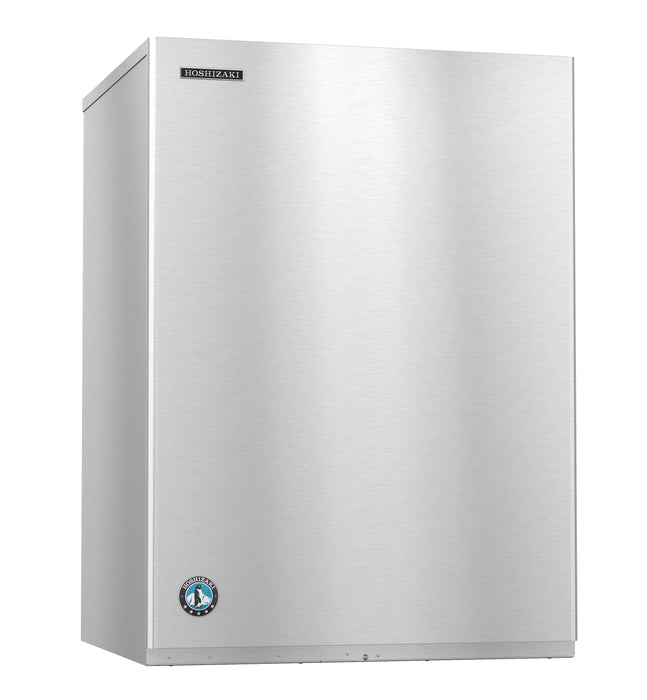

The KM-1601MRJ is capable of producing approximately 1594 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601MRJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-1601MRH.
KM-1601MRJ with URC-22F, Crescent Cuber Icemaker, Remote-cooled Features
- Dimensions: 30″ W x 27-3/8″ D x 41- 5/8 ” H
- Up to 1594 lbs of ice produced per 24 hours

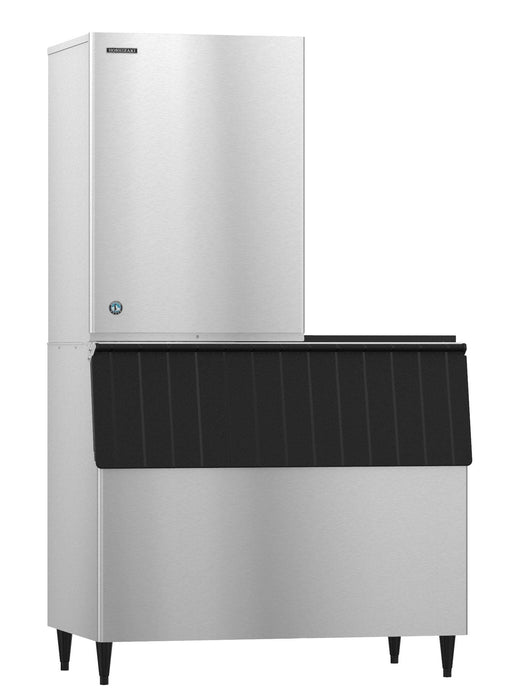

- Stack 2 units for 2x the ice production
- Produces crescent-shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant ( / )
- Heat Rejection:24300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.9 amps (20 Amp Max fuse)
- 4.35 kwh/100 lbs.@ 90/70
- Single-phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at the site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
- Clean ice and easy maintenance lead to a longer unit life span
KM-1601MRJ with URC-22F, Crescent Cuber Icemaker, Remote-cooled Specification
- Electrical Specs: Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at the site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required, Amperage: 15.9, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
- Utility Consumption: 4.35 kWh per 100 lbs @ 90/70, 18 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 24300 BTU/hr, Refrigerant Charge: R-404A, ( / )
