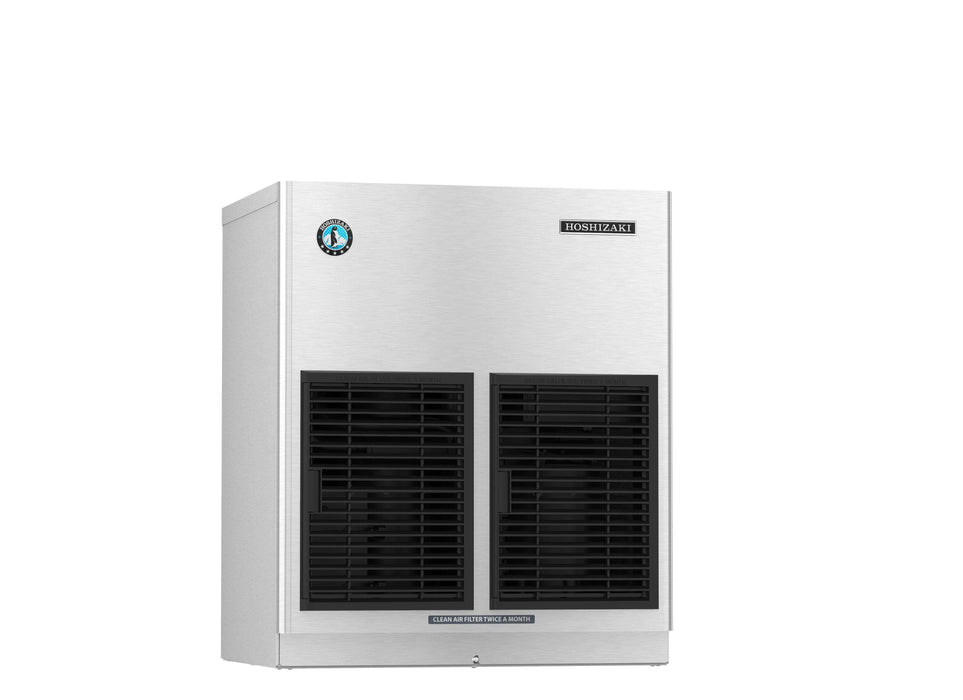

Hoshizaki FS-1022MLJ-C with SRC-10H, Cubelet Icemaker, Remote-cooled, Serenity Series

FS-1022MLJ-C with SRC-10H, Cubelet Icemaker, Remote-cooled, Serenity Series Highlights

The FS-1022MLJ-C is capable of producing approximately 830 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with SRC-10H icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1022MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

FS-1022MLJ-C with SRC-10H, Cubelet Icemaker, Remote-cooled, Serenity Series Features

• Dimensions: 22″ W x 16-1/2″ D x 26″ H
• Up to 830 lbs of ice produced per 24 hours
• Mount units side-by-side for x the ice production
• Produces small cubelet nugget-style ice
• Durable stainless steel exterior

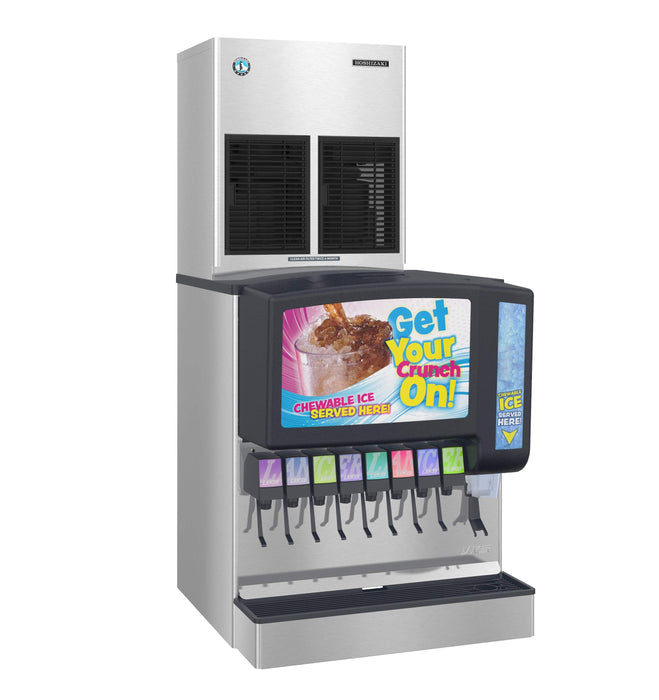

• Compatible bins & dispensers, sold separately: Beverage Dispensers
• Ice removed from evaporator after every shut down cycle
• Advanced CleanCycle24™ design
• Reduces heat in the kitchen and minimizes noise
• R-404A refrigerant (4 oz. / 113 g)
• Heat Rejection:9800 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 9.3 amps (20 Amp Max fuse)
• 5.96 kwh/100 lbs.@ 90/70
• Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
• Clean ice and easy maintenance lead to longer unit life span

FS-1022MLJ-C with SRC-10H, Cubelet Icemaker, Remote-cooled, Serenity Series Specification

• Electrical Specs: Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 9.3, Max Fuse/HACR Breaker: 20 A
• Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
• Utility Consumption: 5.96 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
• Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 9800 BTU/hr, Refrigerant Charge: R-404A, (4 oz. / 113 g)

Use SRC-10J Condenser for Remote Air-Cooled Uni

Spec Sheet:

Manual:
