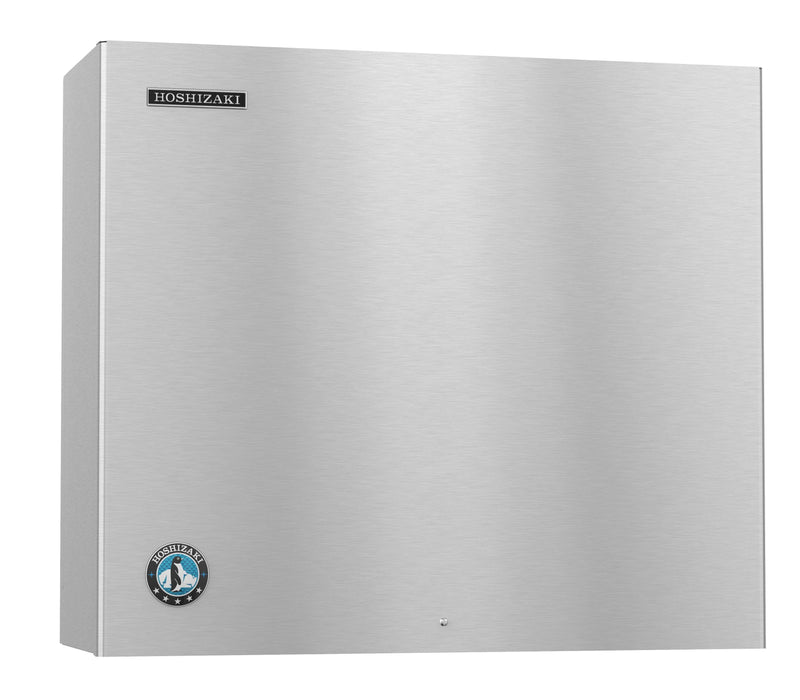

The FS-1001MLJ-C is capable of producing approximately 851 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with SRC-10J icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1001MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.
FS-1001MLJ-C with SRC-10J, Cubelet Icemaker, Remote-cooled, Serenity Series Highlights
- Dimensions: 30″ W x 11″ D x 26″ H
- Up to 851 lbs of ice produced per 24 hours
- Mount units side-by-side for x the ice production
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior

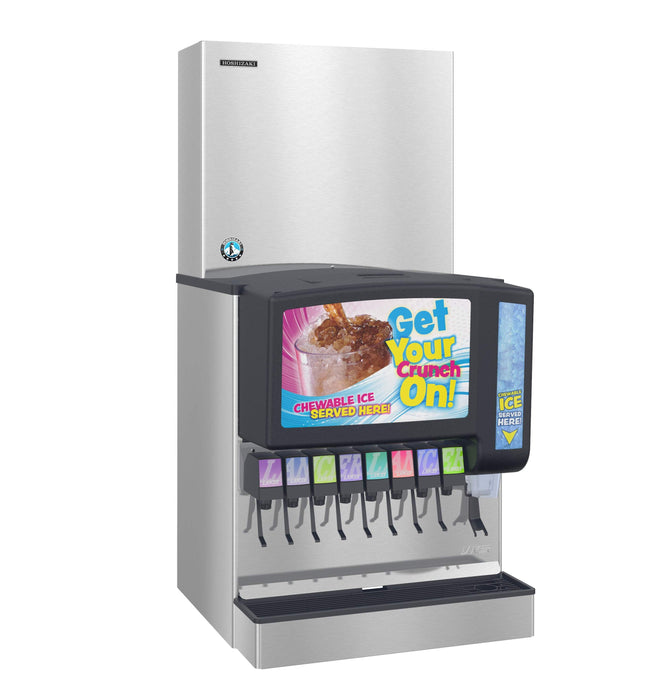

- Compatible bins & dispensers, sold separately: Beverage Dispensers
- Ice removed from evaporator after every shut down cycle
- Advanced CleanCycle24™ design
- Remote cooled models reduces heat in the kitchen and minimizes noise
- R-404A refrigerant (3.5 oz. / 99 g)
- Heat Rejection:9800 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 9.3 amps (20 Amp Max fuse)
- 5.07 kwh/100 lbs.@ 90/70
- Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
- Clean ice and easy maintenance lead to longer unit life span
FS-1001MLJ-C with SRC-10J, Cubelet Icemaker, Remote-cooled, Serenity Series Specification
- Electrical Specs: Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 9.3, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 5.07 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 9800 BTU/hr, Refrigerant Charge: R-404A, (3.5 oz. / 99 g)

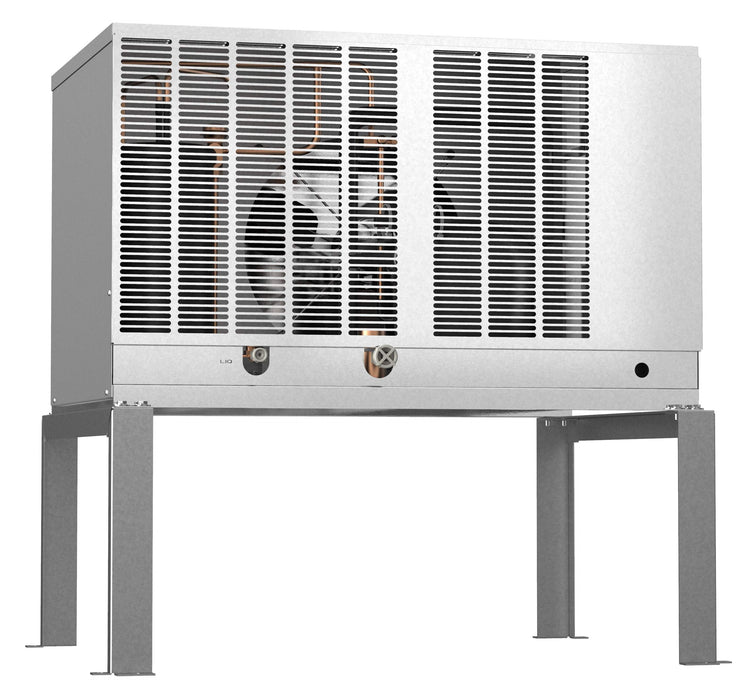

Use SRC-10J Condenser for Remote Air-Cooled Unit
