The F-330BAJ-C is capable of producing approximately 288 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Self Contained, Built in Storage Bin ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ-C requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.

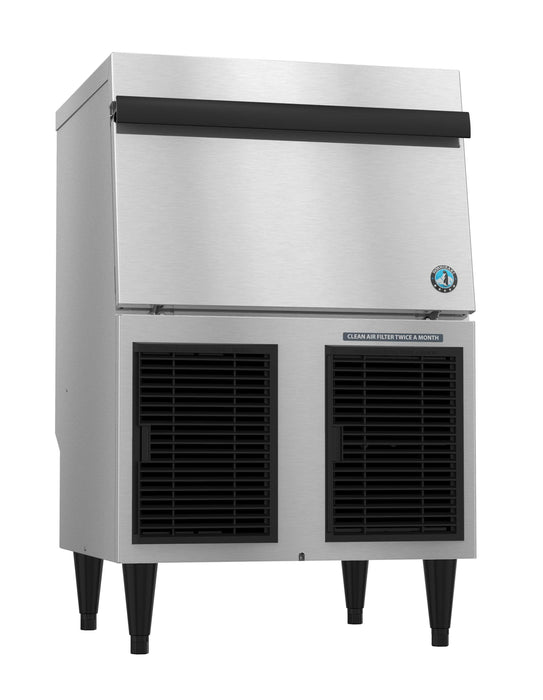

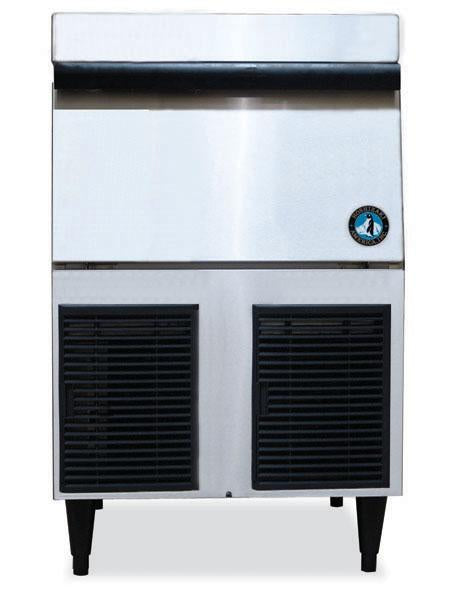

F-330BAJ-C, Cubelet Icemaker, Air-cooled, Built-in Storage Bin Features
- Dimensions: 24″ W x 26″ D x 39″ H
- Up to 288 lbs of ice produced per 24 hours
- Up to 80 lbs of built-in storage capacity (2.7ft3)
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior
- Front in, front out airflow
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (7.1 oz. / 200 g)
- Heat Rejection:3400 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.1 amps (15 Amp Max fuse)
- 7.3 kwh/100 lbs.@ 90/70
- Single-phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to a longer unit life span
F-330BAJ-C, Cubelet Icemaker, Air-cooled, Built-in Storage Bin Specification
- Electrical Specs: Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 7.1, Max Fuse/HACR Breaker: 15 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 7.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
