The F-300BAJ is capable of producing approximately 353 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long-lasting sanitary ice. This Air-cooled, Self Contained, Built-in Storage Bin icemaker stores up to 100 lbs of ice*. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-300BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

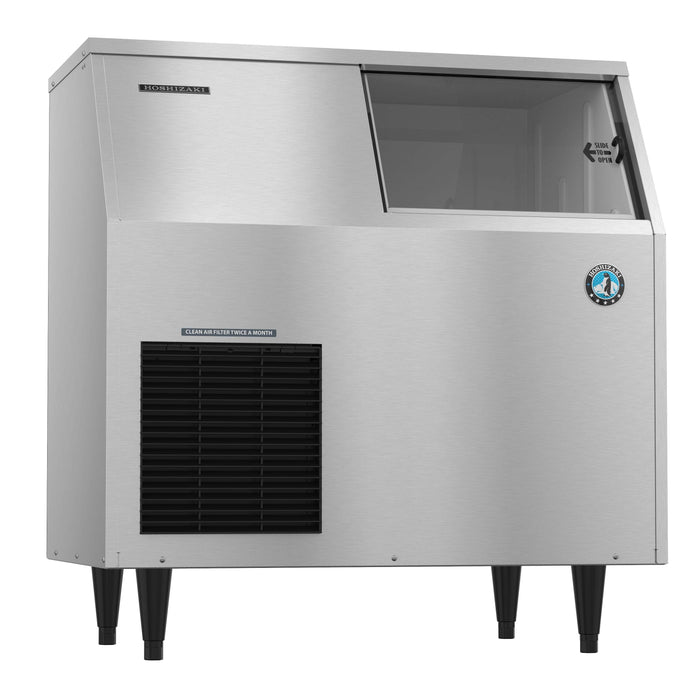

F-300BAJ, Flaker Icemaker, Air-cooled, Built-in Storage Bin Features
- Dimensions: 36″ W x 24-1/4″ D x 39-1/4″ H
- Up to 353 lbs of ice produced per 24 hours
- Up to 100 lbs of built-in storage capacity (3.7ft3)
- Produces flaked ice
- Durable stainless steel exterior
- Front in, front out airflow
- Gear motor protected from overload
- Automatic system flush when bin control is activated
- Designed for long life dependability
- R-404A refrigerant (9.2 oz. / 260 g)
- Heat Rejection:2300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.8 amps (15 Amp Max fuse)
- 6.14 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
F-300BAJ, Flaker Icemaker, Air-cooled, Built-in Storage Bin Specification
- Electrical Specs: Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 7.8, Max Fuse/HACR Breaker: 15 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 6.14 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 2300 BTU/hr, Refrigerant Charge: R-404A, (9.2 oz. / 260 g)
