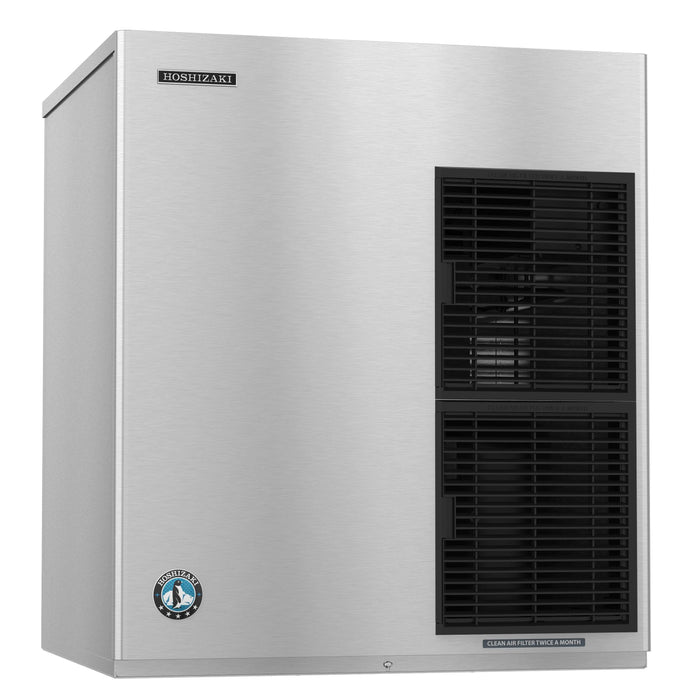

The F-2001MWJ is capable of producing approximately 2043 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-2001MWJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces F-2001MWH.
F-2001MWJ, Flaker Icemaker, Water-cooled Features
- Dimensions: 30″ W x 27-1/2″ D x 34-7/16″ H
- Up to 2043 lbs of ice produced per 24 hours

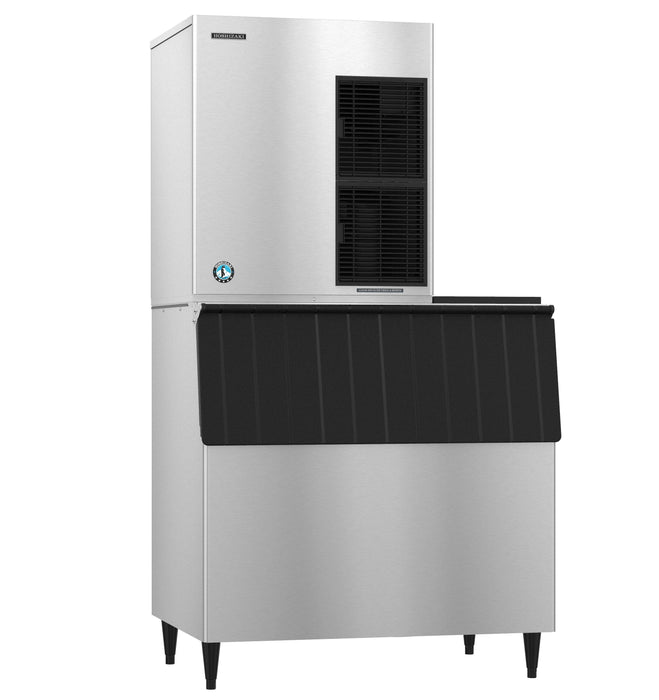

- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Designed for long life dependability
- R-404A refrigerant (2 lbs. 0.1 oz. / 910 g)
- Heat Rejection:19500 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 16.4 amps (30 Amp Max fuse)
- 3.19 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
F-2001MWJ, Flaker Icemaker, Water-cooled Specification
- Electrical Specs: Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 16.4, Max Fuse/HACR Breaker: 30 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/8" FPT Outlet, Minimum 1/4" Nominal ID Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
- Utility Consumption: 3.19 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 19500 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 0.1 oz. / 910 g)
