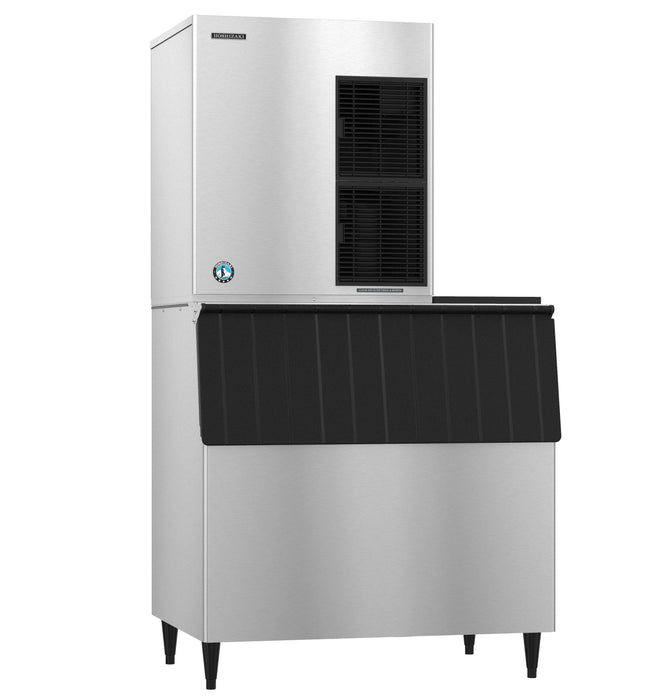

The F-2001MRJ-C is capable of producing approximately 1832 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with URC-22F ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-2001MRJ-C requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces F-2001MRH-C.
F-2001MRJ-C with URC-22F, Cubelet Icemaker, Remote-cooled Features
- Dimensions: 30″ W x 27-1/2″ D x 34-7/16″ H
- Up to 1832 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces medium cubelet nugget-style ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Designed for long life dependability
- R-404A refrigerant (8 lbs. 2.5 oz. / 3700 g)
- Heat Rejection:20300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 19.9 amps (30 Amp Max fuse)
- 4.35 kwh/100 lbs.@ 90/70
- Single-phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at the site, no cord/plug included
- Clean ice and easy maintenance lead to a longer unit life span
F-2001MRJ-C with URC-22F, Cubelet Icemaker, Remote-cooled Specification
- Electrical Specs: Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 19.9, Max Fuse/HACR Breaker: 30 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 4.35 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 20300 BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 2.5 oz. / 3700 g)
