The F-1501MWJ-C is capable of producing approximately 1376 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Water-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MWJ-C requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
F-1501MWJ-C, Cubelet Icemaker, Water-cooled Features
- Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
- Up to 1376 lbs of ice produced per 24 hours

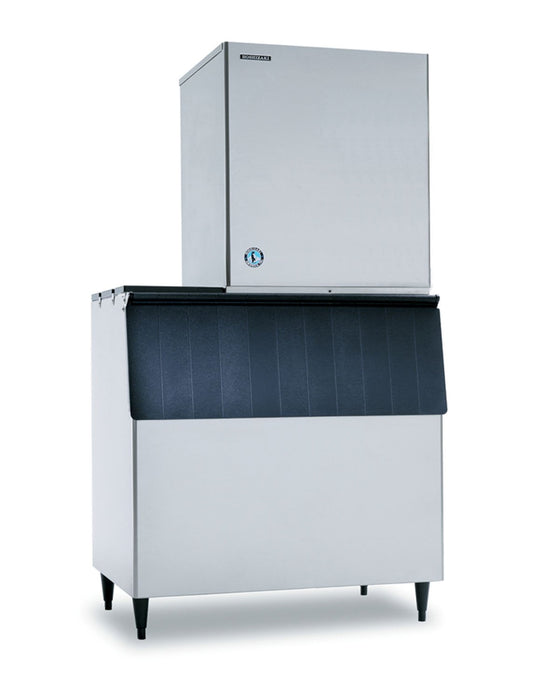

- Mount 2 units side-by-side for 2x the ice production
- Produces medium cubelet nugget-style ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Infrared bin control for easy cleaning and reliability
- R-404A refrigerant (1 lbs. 4.5 oz. / 580 g)
- Heat Rejection:12800 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.4 amps (20 Amp Max fuse)
- 3.76 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
F-1501MWJ-C, Cubelet Icemaker, Water-cooled Specification
- Electrical Specs: Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.4, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/8" FPT Outlet, Minimum 1/4" Nominal ID Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
- Utility Consumption: 3.76 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 12800 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 4.5 oz. / 580 g)
