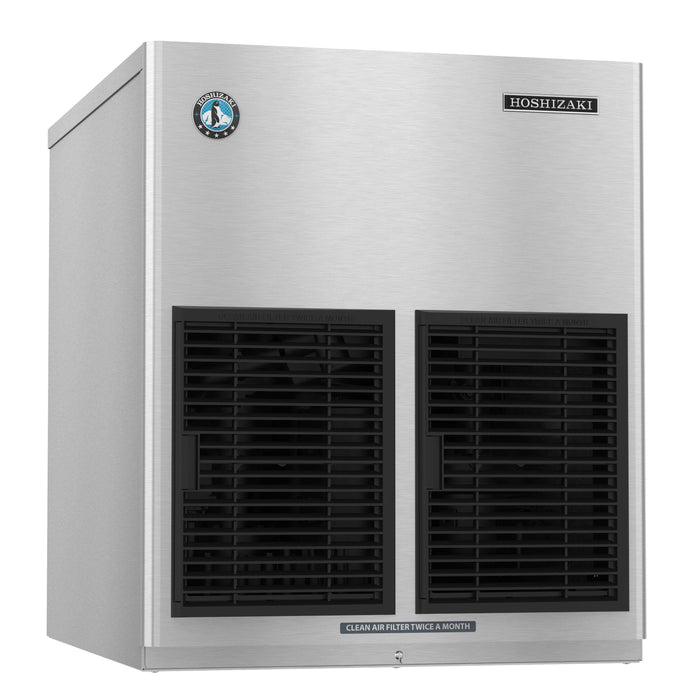

The F-1002MAJ-C is capable of producing approximately 890 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.
F-1002MAJ-C, Cubelet Icemaker, Air-cooled Features
- Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
- Up to 890 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior

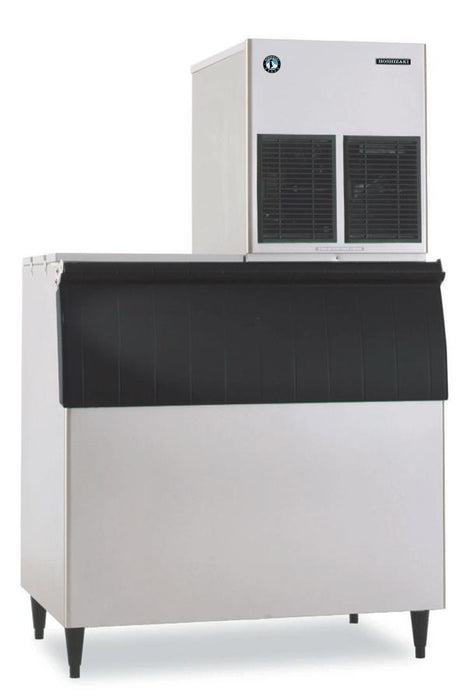

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (2 lbs. 4 oz. / 1025 g)
- Heat Rejection:8700 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 15.23 amps (20 Amp Max fuse)
- 4.57 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
F-1002MAJ-C, Cubelet Icemaker, Air-cooled Specification
- Electrical Specs: Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.23, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
- Utility Consumption: 4.57 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 8700 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 4 oz. / 1025 g)
