The DKM-500BWJ is capable of producing approximately 540 lbs of Crescent Cube-style ice cubes per day, and the built-in dispensing system holds up to 140 lbs in insulated storage* to ensure you always have enough ice on hand! This commercial Water-cooled ice maker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. Ice dispensing height is ADA compliant and is Protected by H-GUARD Plus Antimicrobial Agent. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is Clean ice and easy maintenance lead to a longer unit life span. The DKM-500BWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

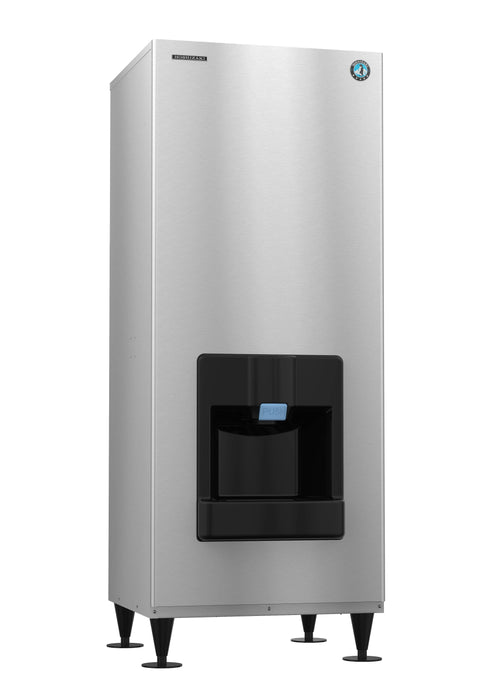

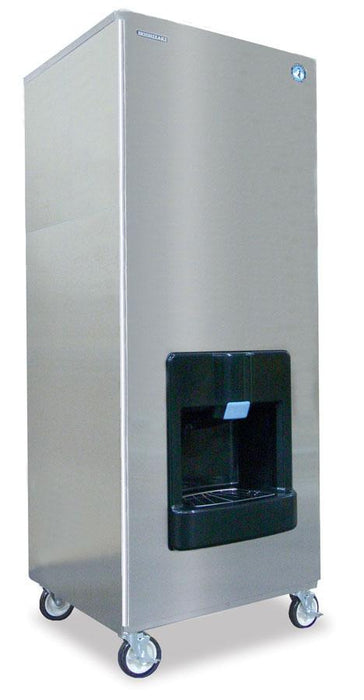

DKM-500BWJ, Crescent Cuber Icemaker, Water-cooled, Built-in Storage Bin Features
- Dimensions: 30″ W x 28″ D x 77″ H
- Up to 540 lbs of ice produced per 24 hours
- Up to 140 lbs of built-in storage capacity (6.7ft3)
- Push button operated, 13 lbs of crescent cube icemin
- Durable, attractive one piece stainless steel exterior
- Push button operated, 13 lbs of icemin
- Ice dispensing height is ADA compliant
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (1 lbs. 2 oz. / 510 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 12 amps (20 Amp Max fuse)
- 4.79 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
DKM-500BWJ, Crescent Cuber Icemaker, Water-cooled, Built-in Storage Bin Specification
- Electrical Specs: Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 12, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/8" FPT x2 Drain, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
- Utility Consumption: 4.79 kWh per 100 lbs @ 90/70, 18 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 2 oz. / 510 g)
