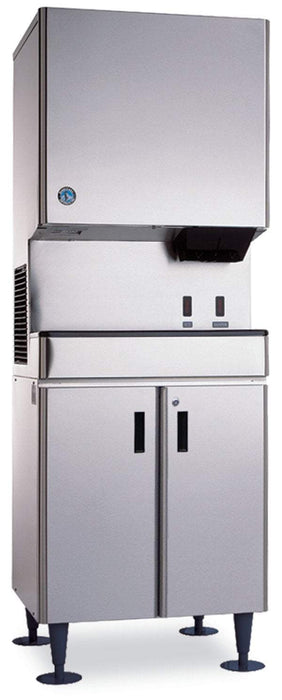

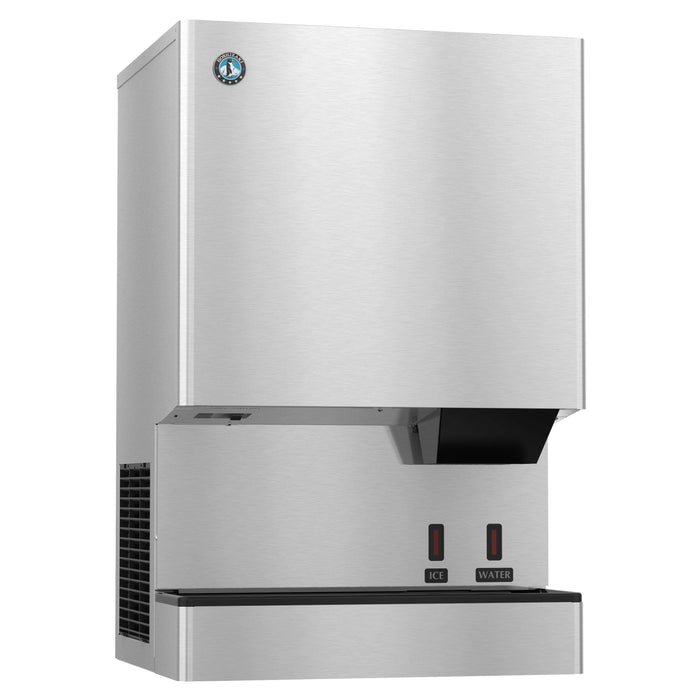

The DCM-500BAH-OS is capable of producing approximately 618 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 40 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
DCM-500BAH-OS, Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin Features
- Dimensions: 26″ W x 22-1/2″ D x 40″ H
- Up to 618 lbs of ice produced per 24 hours
- Up to 40 lbs of built-in storage capacity (1.3ft3)
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior
- Place on countertop or optional stand: SD-450, SD-500
- LED remote sensor for hands-free operation with opaque containers
- CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (1 lbs. 4.1 oz. / 570 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 12.9 amps (20 Amp Max fuse)
- 5.62 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1
- Clean ice and easy maintenance lead to longer unit life span
DCM-500BAH-OS, Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin Specification
- Electrical Specs: Single phase, 115v/60/1 , Amperage: 12.9, Max Fuse/HACR Breaker: 20 A
- Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
- Utility Consumption: 5.62 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
- Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 4.1 oz. / 570 g)
