Summit 30 in. Wide 230V 4-Burner Coil Cooktop with 4 Elements, Hot Surface Indicator, UL Safety Listed, UL Listed - ZEL05

Summit 30 in. Wide 230V 4-Burner Coil Cooktop with 4 Elements, Hot Surface Indicator, UL Safety Listed, UL Listed - ZEL05

by Summit
SKU ZEL05
$500.00 - $500.00
$500.00
$500.00 - $500.00
$500.00

✓ Free Shipping* - Receive free or low rate shipping and No Sales Tax (Excludes NY) on your order!
✓ Authorized Dealer - We are authorized dealers of every brand on our website.
✓ Questions? Call (313)-228-3996

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.

The ZEL05 is a 30" wide 220-240V electric cooktop designed to fit 28 3/8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on.

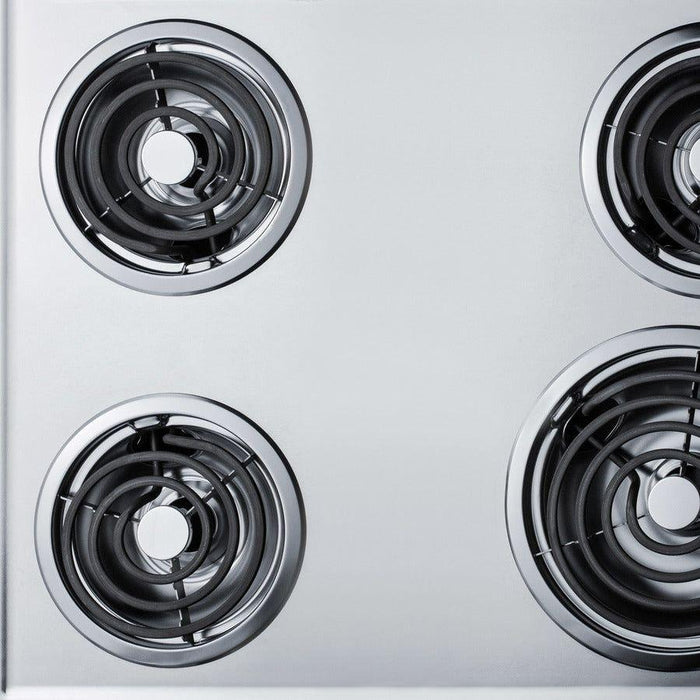

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord.

The ZEL05 is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

SPECIFICATIONS

Overview
Height of Cabinet 3.75" (10 cm)
Width 29.75" (76 cm)
Depth 20.0" (51 cm)
Cabinet Chrome
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Parts & Labor Warranty 1 Year
UPC 761101061665
Electric Cooktop
Heating Type Radiant
Element Type Coils
Number of Elements 4
Controls Dial
Countertop Cutout Width 28.38" (72 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Power Cord Included No


FEATURES

Made in the USA

Designed and constructed domestically

Classic fit

Fits 28 3/8" W x 18 5/8" D counter cutouts

Chrome finish

Metallic design for a professional look with lasting durability

Coil elements

Traditional design offers reliable heating and strong durability for everyday use

Safety burners with low wattage outputs

Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

8" burner

Larger element is ideal for heating wider pots and pans

Three 6" burners

Standard burners accommodate most heating needs

Chrome drip pans

Each coil element includes a removable chrome pan to catch spills for easier cleanup

Recessed top

Curved design helps to contain spills on the surface

Push-to-turn controls

Knobs require a small amount of force for added safety

Side controls

Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens

220-240V operation

Professional installation required

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords
